Rotary Trencher
We, Lillard, are a professional manufacturer of fruit tree trenching machines, which are suitable for 30-65 horsepower tractors, with a trench width of 30-40cm and a depth of 25-50cm. The efficiency is 1000-1500 meters per hour, which is 40 times faster than manual labor. It is suitable for fertilization and drainage ditch excavation in orchards, green onions, and ginger planting. It supports wholesale customization and helps efficient management of orchards.
Products Categories
Get A Free Quote
Rotary Trencher Data Sheet
| Product Name | Tractor power（HP） | Blade diameter | Number of blades | KG | Machine: Length*Width*Height(CM) | Working width(cm) | Trench depth(cm) |
| Square middle trencher | 40-90 | 60cm | 20／24 | 260kg | 135*93*95 | 40-60 | ≤50 |
| Circular center trencher | 40-90 | 60cm | 20／24 | 265kg | 140*100*95 | 40-60 | ≤50 |
| 30° Square Trench Opener | 40-90 | 60cm | 20／24 | 280kg | 135*113*95 | 40-60 | ≤50 |
| 30° Circular Trencher | 40-90 | 60cm | 20／24 | 285kg | 140*120*95 | 40-60 | ≤50 |
| 60° Square Trench Opener | 40-90 | 60cm | 20／24 | 320kg | 135*150*95 | 40-60 | ≤50 |
| 60° Circular Trencher | 40-90 | 60cm | 20／24 | 325kg | 135*150*95 | 40-60 | ≤50 |
| Note: The general model has 20 blades, and when the width is customized to 60, it has 24 blades. The 16 blades are the enhanced model. Please note if you need them. Notes are required for side excavation. | |||||||
Get Free Quote of Rotary Trencher
Save tractor power costs, 40 times more labor efficiency, orchard-specific narrow and deep trench design. Especially “vines buried in vines”; ask for a quote and save money!
Rotary Trencher Applications
Born for orchards, better at intensive cultivation:
- Precise fertilization in orchards: Narrow and deep trenches (30-40cm wide and 25-50cm deep) designed specifically for the root system of fruit trees, close to the tree row for efficient trenching, accurate and deep fertilizer application, significantly improving fertilizer efficiency, surpassing general trenching machines.
- Winter protection for vines: The unique trench shape (straight, steep, and deep) perfectly meets the needs of vines such as grapes and kiwis to bury vines and protect against cold, quickly trenching and covering soil, saving time and effort.
- Management of densely planted orchards: The compact body flexibly shuttles between the narrow rows of densely planted orchards, solving the pain point that large equipment cannot enter.
- High ridge economic crops: Efficiently complete trenching and soiling for crops such as ginger and green onions, helping to increase yields.
- Edge operations of facility agriculture: Easily bury soil and film on the outer edge of the plastic greenhouse and dig drainage ditches to protect the greenhouse body.
- Mulberry garden/special orchard management: It is also applicable to trenching, fertilization and drainage of mulberry fields and special orchards such as jujube and persimmon.
Rotary Trencher Video

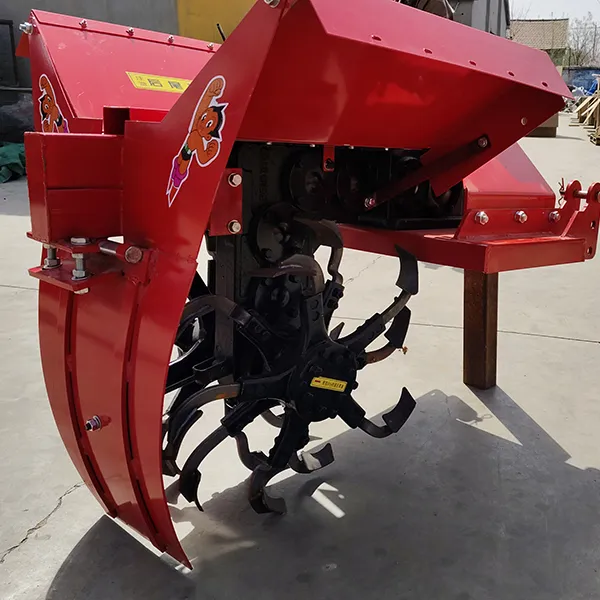

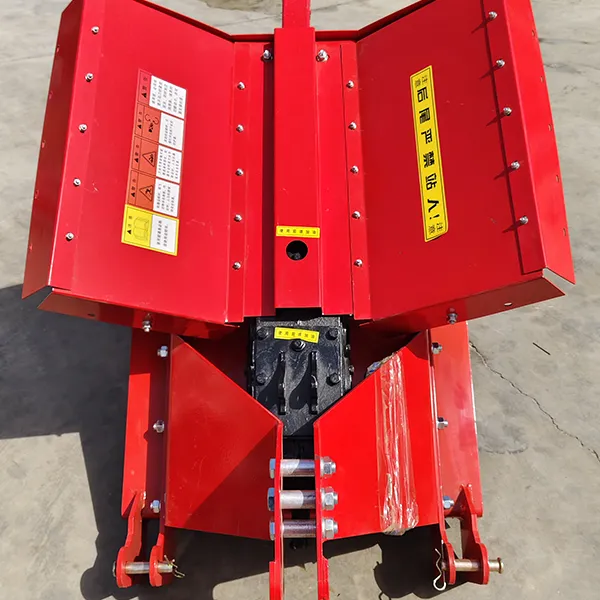

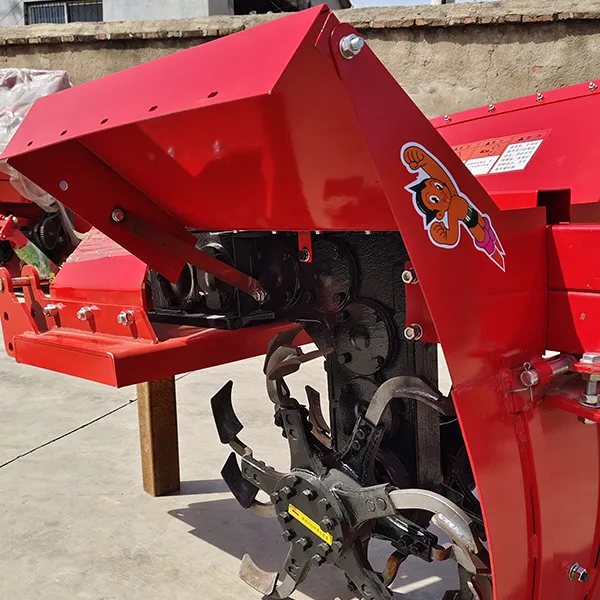

Rotary Trencher Detail Display
